• DCZH70

Highlights

  • Effective cutting area:- 98*63 inch, 67*51 inch & 51*39 inch
  • Configuration:- Oscillating knife, drag knife, pen creasing tool
  • Max speed:- 1350 mm/s
  • Max cutting thickness:- 30mm
  • Smallest cutting diameter:- 6mm
  • Precision ? 0.1mm
  • Voltage:- 220V ± 10% 50HZ
  • Options :- Video registration system, V cut knife (for Grooving), foam cutting, convey belt.
  • Occupy dimension (L*W*H) :- 134*97*46 inch ,102*85*46 inch & 87*73*46 inch.
  • Application :- Foam, Corrugated Sheets, PVC Corrugated and Honey comb board.
  • Optional Software:- CAD/CAM & 2D/3D structural design and animations of packaging and POP displays from folding carton, corrugated board and rigid board.

MODULES

  • Library of Packaging & Display Designs
  • Drafting with Parametric Components
  • Integration with Adobe illustrator
  • Nesting Layout & Layout Optimizer

Enquire now

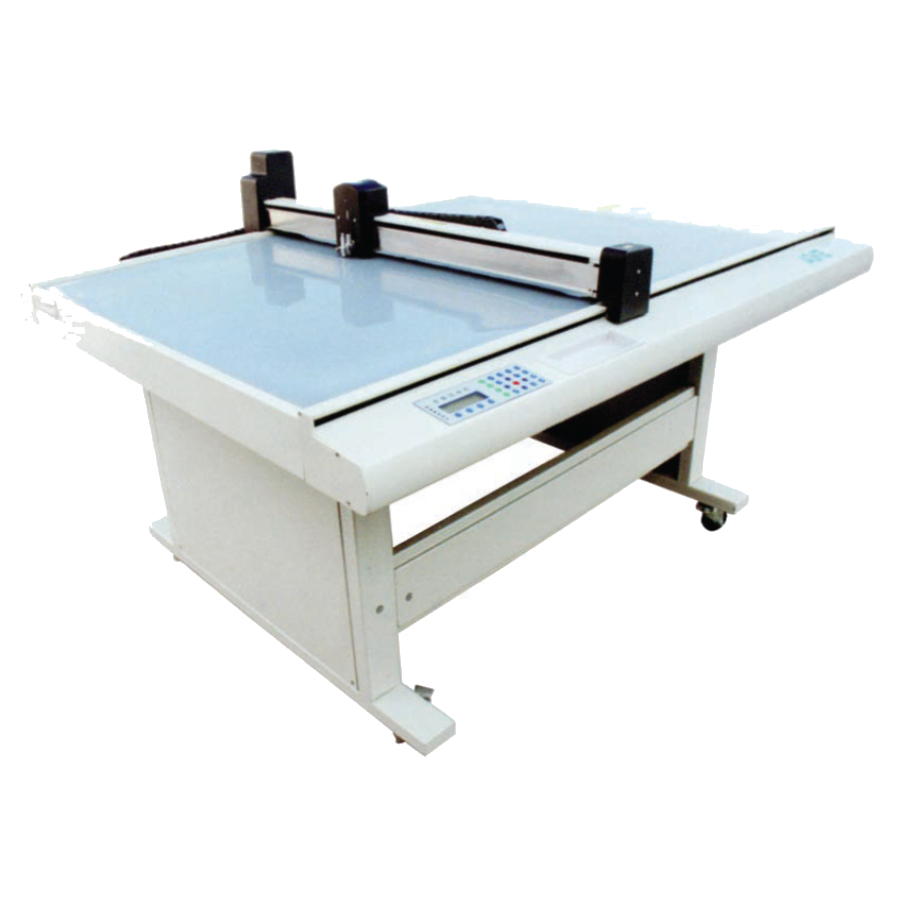

  • DCLH30

Highlights

  • Effective cutting area:- 59*47 inch , 47*35 inch, 35*24 inch
  • Configuration:- Pen, knife, creasing tool , laser position
  • Driver :- Step motor
  • Max speed:- 1000mm/s
  • Cutting precisiom:-<0.1mm
  • Cutting thickness:- 2mm
  • Smallest cutting diameter:- 1mm
  • Occupy dimension :-76*65*42* inch, 64*64*42* inch, 52*42*42* inch
  • Application :- Film , Sticker , Label

Enquire now

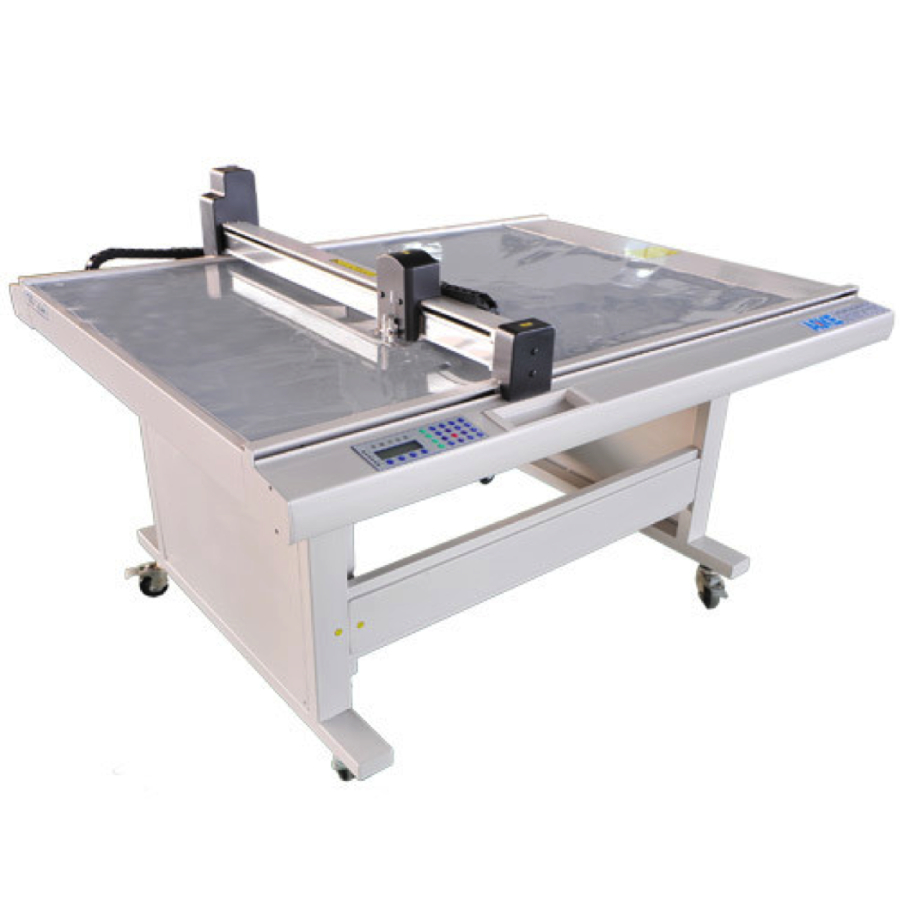

  • DCLL 70

Highlights

  • Effective cutting area:- 47*35 inch, 35*24 inch
  • Configuration:-Pen, pressure control knife, laser position
  • Way of absorbing:- Vacuum, Electrosatic
  • Max.Speed:-10000mm/s
  • Cutting precisiom:- <0.01mm
  • Cutting thickness:- <1mm
  • Occupy dimension:-64*54*43* inch, 53*42*42* inch
  • Application:-Film , Sticker , Label

Enquire now

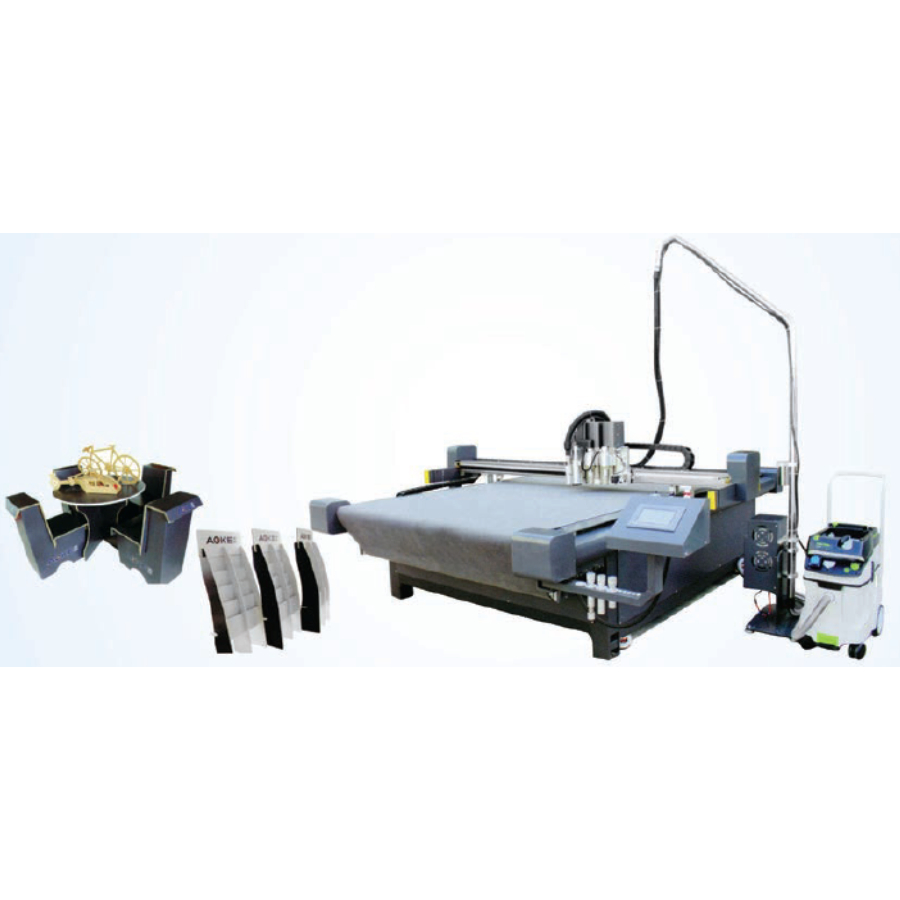

  • DCZH 76R

Highlights

  • Effective cutting area:- 98*63 inch, 68*51 inch, 98*63inch
  • Configuration:- Oscillating knife, Pen, Drag kinfe, Creasing tool, Fomatool, V cut tool , Router system, convey belt
  • Router speed:- 500000RPM /25000RPM
  • Max.Speed:- 10000mm/s
  • Cutting precisiom:- <0.1mm
  • Cutting thickness:- 60mm
  • Data form:-HPGL ,DXF ,PDF
  • Voltage:-220V ± 10% 50Hz
  • Option:-Video registration system , feeding andlanking system
  • Occupy dimension:- 138*130*55 inch, 106*118*55 inch, 138*130*55 inch

Enquire now
